1x8 Outdoor Aerial Hanged FAP Fiber Access Point

Name: 1x8 Outdoor Aerial Hanged FAP Fiber Access Point
Brand: CSYHT
Price: 6.9 USD

Buy cheap 1x8 Outdoor Aerial Hanged FAP Fiber Access Point product

Brand Name : CSYHT

Model Number : OTB-P040

Certification : ISO

Place of Origin : China

MOQ : 50pcs

Price : USD 6.9-9.8 per set

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 300 set per month

Delivery Time : 7 days

Packaging Details : carton

Material : ABS plastic

Dimension : 303.15x198.4x72mm

Capacity : 12-24 fibers

Splitter : 1x8 splitter cassette

Cable ports : 4 entry 8 output ports

Application : outdoor aerial hanged

Contact Now

Outdoor aerial hanged FAP 8 FO fiber access point

Description:

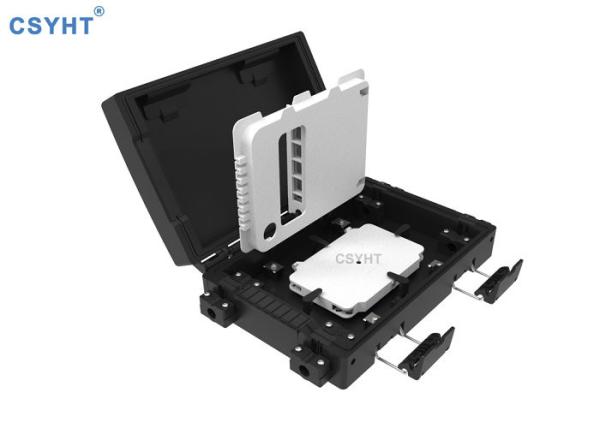

OTB-P040 is an outdoor aerial hanged fiber access point can load 1pc splitter cassette 1x8 and support 8 drop cable output. This FAP has 4 cable entry ports that support cable entry without cutting. It is outdoor aerial hanged for fiber distribution and connection.

Specification:

Model	Dimension	Material	Capacity	Splitter
OTB-P040	303.15x198.4x72mm	ABS plastic	12-24 fibers	D-1X8 splitter cassette

Features:

Material: ABS plastic

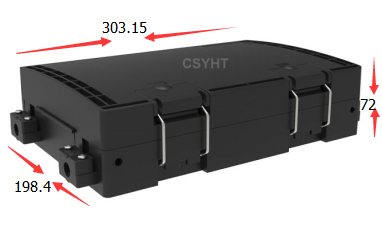

Dimension: 303.15x198.4x72mm

Structure: Mechanical sealing

Waterproof standard: IP65

Splice tray: 1pc OST-050

Capacity: 12-24 fiber splicing

Cable ports: 4 cable entry ports for φ6 - 8mm cable, support cable entry without cutting

8 output ports for drop cable 2*3mm

Application: Outdoor aerial hanged

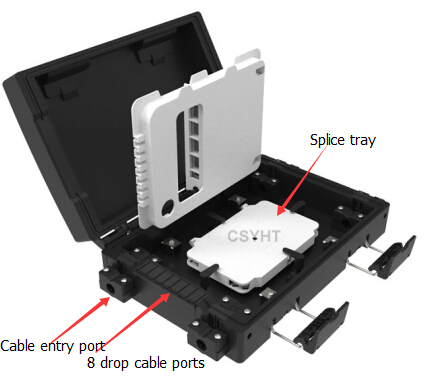

Advantage: Two layer space, the upper space with splitter cassette for fiber distribution, the lower space with splice tray for fiber splicing and connection.

1x8 Outdoor Aerial Hanged FAP Fiber Access Point

Similar model: OTB-P038

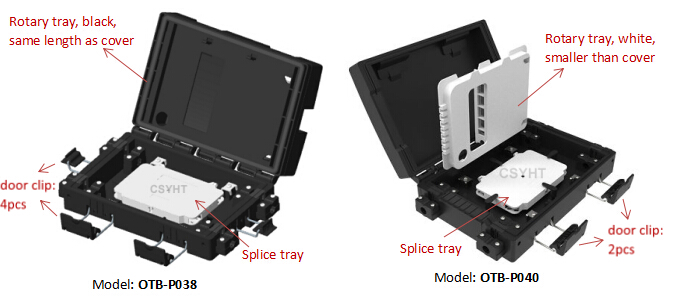

The difference between OTB-P038 and OTB-P040.

1x8 Outdoor Aerial Hanged FAP Fiber Access Point
