Outdoor IP65 16fibers FTTH Fiber Optic Terminal Box 1x16

Brand Name : CSYHT

Model Number : P034

Certification : ISO9001:2015

Place of Origin : CHINA

MOQ : 50pcs

Price : 8.2usd

Payment Terms : T/T

Supply Ability : 5000pcs/week

Delivery Time : 7 working days

Packaging Details : carton

Material : ABS+UV

Color : white, black

application : wallmount and pole mount

waterproof : IP65

Capacity : 18 SC simplex adpaters

PLC splitter : 1x16

Dimension : 182.5X306.4X115.5mm

Splice catacity : 16fibers.

Cable ports : 2 PG gland + 1 oval + 16 drop cable port

Contact Now

Description:

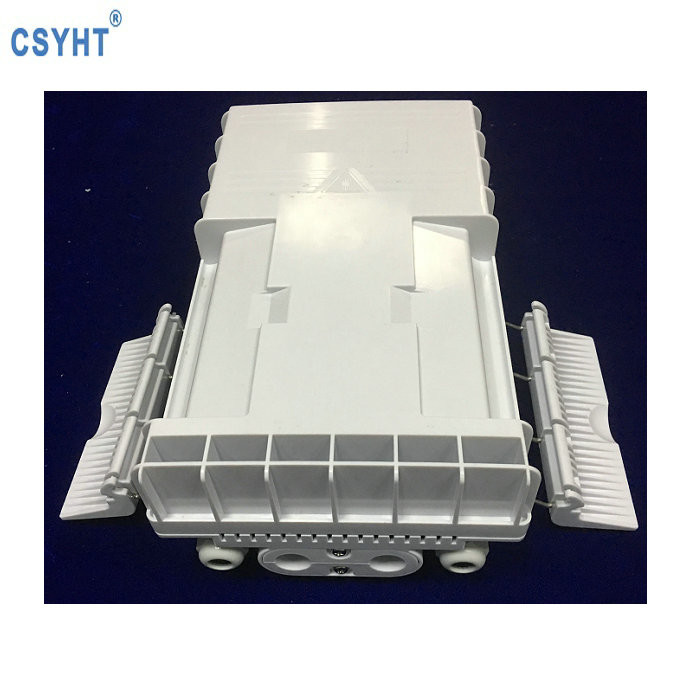

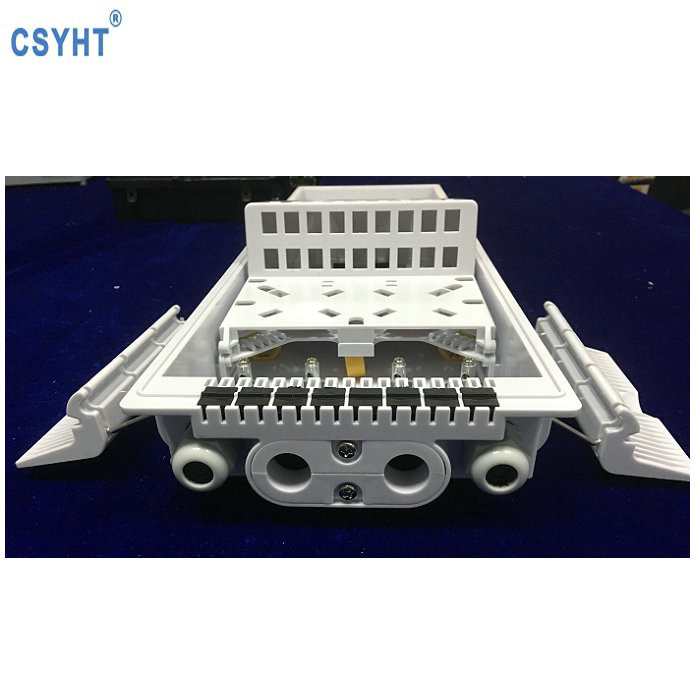

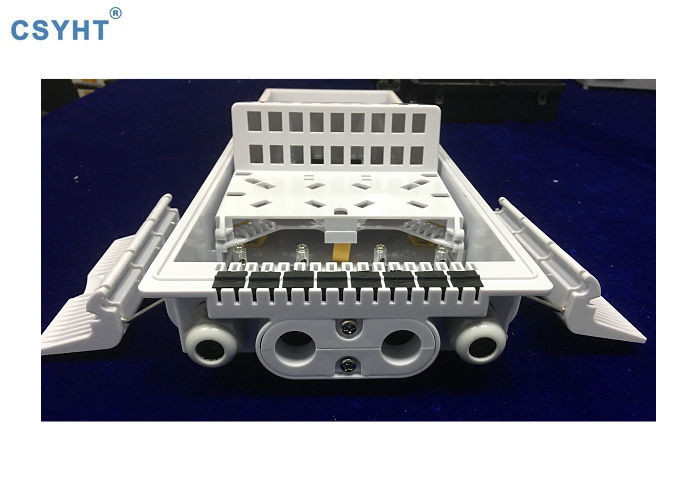

OTB-P034 is a plastic fiber optic terminal box that suitable for optical fiber splicing, distribution and protection. It can load 18pcs SC simplex adapters and 1pc PLC 1:16 steel tube type splitter. It support 16 drop cable output and cable entry without cutting.


Features:

Material: ABS+UV plastic
Max. 18pcs SC simplex adapter
Can load 1pc 1:16 steel tube type splitter
Cable ports: 2pcs M20 cable ports for Φ6~11mm cable entry  1 oval port support Φ6~18mm cable entry without cutting 16pcs 2*3mm drop cable
output ports
Wall mounting and pole mounting application
Waterproof, outdoor using, IP65





Application:
FTTH access network
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks



Specification:



Model Dimension(mm) Material Adapter Port Splice Capacity Cable port Application
OTB-P034 182.5X306.4X115.5 ABS 18 SC simplex 16fibers 2 PG gland + 1
oval + 16 drop
cable port		 Outdoor wall
mounted or pole
mounted
