Outdoor Optical Terminal Box Fiber Optic Distribution Box FTTH 12core

Name: Outdoor Optical Terminal Box Fiber Optic Distribution Box FTTH 12core
Brand: CSYHT
Price: 7.3 USD

Buy cheap Outdoor Optical Terminal Box Fiber Optic Distribution Box FTTH 12core product

Brand Name : CSYHT

Model Number : OTB-P028

Certification : CE RoHS ISO

Place of Origin : Guangdong China

MOQ : 200pcs

Price : US$7.3-8 per unit

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000 per month

Delivery Time : 3000pcs 10days

Packaging Details : Carton package or customize package

Material : ABS plastic

Color : Black or white optional

Size : 234*210*71mm

Capacity : 12 F.O.

Adapter port : 12 SC simplex or 6 LC duplex

Usage : Telecom Equipment FTTx FTTh System

Application : Wall mount or pole mount

Certificate : CE RoHS ISO

Services : OEM ODM

Contact Now

Outdoor Optical Terminal Box Fiber Optic Distribution Box FTTH 12core
Describtion:
OTB-P028 FAT (Fiber Access Box) is YHT new design FTTH boxes in 2020 . MINI box body with max 12Cores capacity splicing , can installate Steel tube 1x4 or 1x8 type PLC splitter according to customer true using demand .The cable entry without cutting , let the box more easily operation .

Features:

Product name:Fiber Optic Distribution Box
Material: high quality ABS
Waterproof level:IP66
Installation Type:wall / pole-mounted
Certification:CE/ROHS/ISO9001
Ports:12 Ports
Color:Black White
Type:Outdoor
Connector Type:SC LC
PLC Type:Mini or Cassette
Brand Name:CSYHT
Type:FTTH box
Single-Mode Fiber:Singlemode
Multi-Mode Fiber:Mutimode
No. of Fiber:12
Use:FTTH
Application:FTTH
Warranty Time:3 year
Max Capacity:12 Core

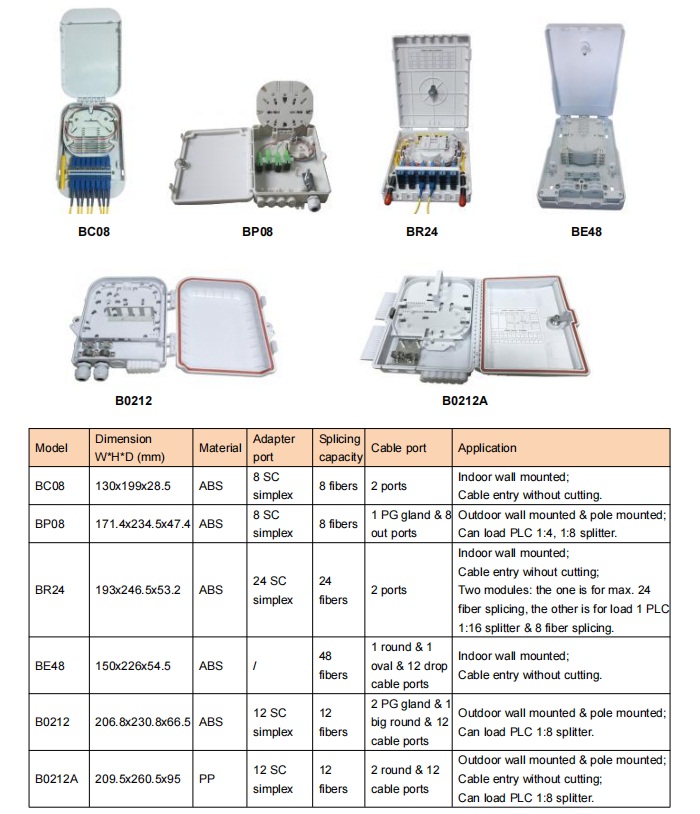

Specification:

Model	Dimension WHD(mm)	Material	Adapter port	Splicing capacity	Cable port	Application
OTB-P028	23421071	ABS	12 SC Simplex	12 Fibers	2in & 12out	Outdoor wall mounted & pole mounted , can load 1x4 or 1X8 PLC splitter
B0216E1	274.3313.4144.1	ABS	24 SC Simplex	24 fibers	2 round & 24 drop cable port	Outdoor wall mounted & Pole mounted ,can load 1*16 PLC splitter cable entry without cutting
B0216	250.4322.591.9	ABS	16 SC Simplex	16 fibers	1 oval & 16 drop cable ports	Outdoor wall mounted & Pole mounted ,can load 1*16 PLC splitter

Pictures:

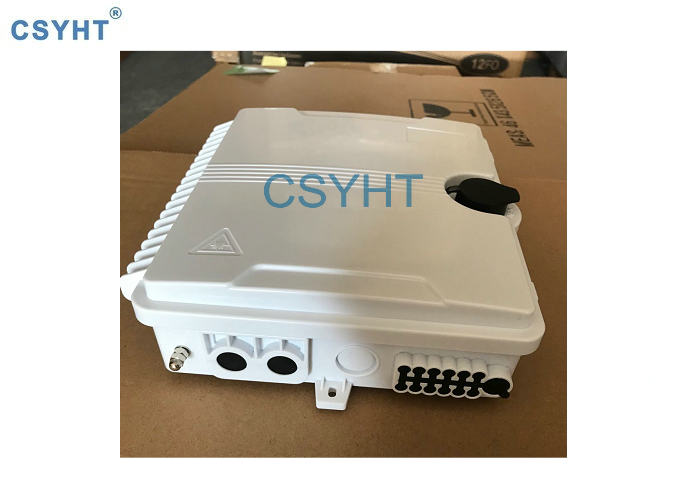

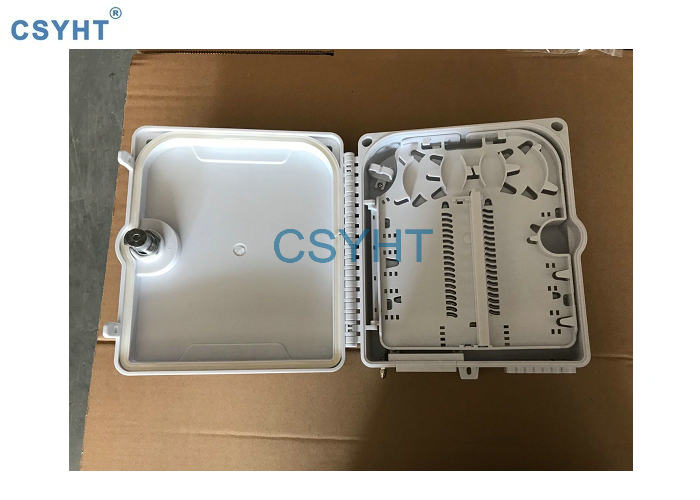

Outdoor Optical Terminal Box Fiber Optic Distribution Box FTTH 12core
